SED Plug: Connecting innovative and safe automotive power options

With the rapid development of technology, the automotive industry's demand for safe and efficient power connections continues to escalate. SED plugs stand out as a key automotive power connector in a market filled with a wide variety of plugs. This article will take an in-depth look at the types and characteristics of SED plugs, as well as the correct installation method during use.

Product Category:

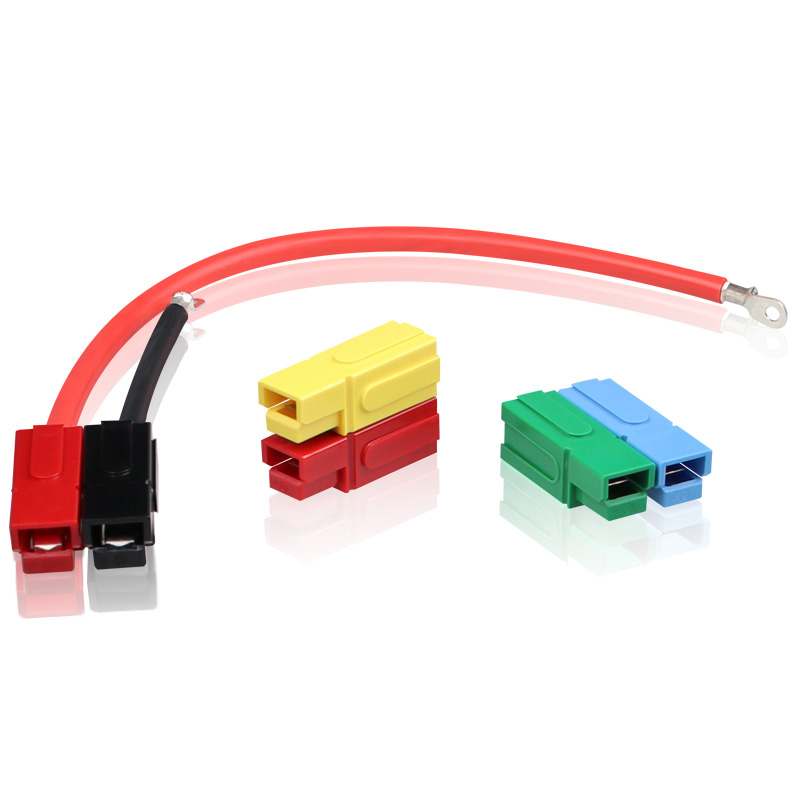

**A. Unipolar Connector(Unipolar Lithium Battery SED Connector):**

    - Specifications: 45A, 75A, 120A, 180A

    - High current capacity, small size, can be assembled freely, suitable for both AC and DC scenarios.

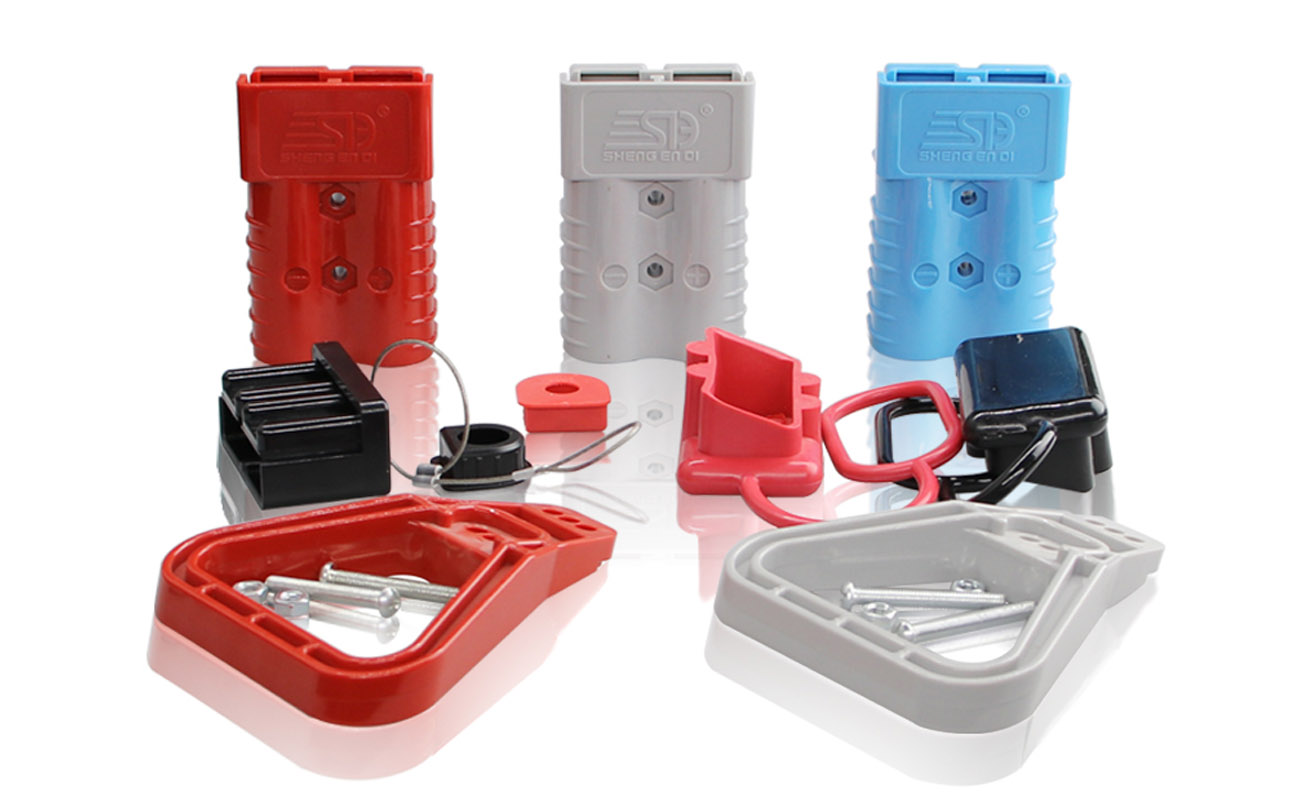

**B. Multipole Connector(Forklift Battery Power Cable SED Connectors,Electric Car Charger SED Connector):**

    - Specifications: 50A, 120A, 175A, 350A

    - Positive and negative pole design, two holes plugged into each other, silver-plated terminals, matching handle.

**C. Three-pole connector:**

    - Specifications: 50A, 175A 600V

    - Suitable for three-phase/DC product connection.

**D. Two-pole connector with contacts:**

    - Specification: 175A + 45A

    - Suitable for energizing the battery and monitoring battery temperature rise.

**Main Features:**

1. **High temperature resistant and anti-corrosion housing:**

    - Made of polycarbonate material to ensure the connector has excellent anti-corrosion performance in high temperature environments.

2. **Color-coded design:**

    - Eye-catching color coding, different colors correspond to different connector interfaces, effectively preventing misplugging.

3. **Purple copper silver-plated hardware terminals:**

    - The hardware terminals are made of silver-plated copper to ensure excellent electrical conductivity.

    - Hardware spring clips with positioning grooves to prevent terminal movement and ensure good contact.

4. **Male and female design:**

    - The connectors are not divided into male and female designs, which helps reduce the complexity of inventory management.

5. **Complete accessories:**

    - Comes with handle and dust cover for extra convenience and protection.

During the process of inserting the SED plug pins into the connector, be sure to observe whether the lock is engaged. When inspecting the waterproof connector, be careful to prevent oil and water from entering the jack. If necessary, clean and dry before connecting again to ensure the reliability of the plug connection.

Choosing SED plugs is a wise choice for innovation and safety. Whether in automotive power systems or other high-power power SEDlications, SED plugs provide users with excellent connection performance, ensuring driving safety and power supply stability.
