Unipolar connector

/350A 600V High Frequency Module Power Quick Anderson Plug
350A 600V High Frequency Module Power Quick Anderson Plug
350A 600V Golf electric car charging connector plug
350A 600V 1Pin Single Pole Electrical Power Battery Connector
350A 600V Electric Car Battery Plug Socket Connectors Kits
350A 600V Single Pole Forklift Power Plug Car Battery Anderson Connectors

350A 600V High Frequency Module Power Quick Anderson Plug

350A 600V High-Frequency Module Power Quick Anderson Plug, a high-performance connector designed for demanding power applications.



This versatile plug is engineered with precision and efficiency to meet the needs of large power sources across various industries.

  • Item No :

    SD
  • Order(MOQ) :

    1
  • Payment :

    TT
  • Product Origin :

    Dongguan
  • Shipping Port :

    Shenzhen
  • Lead Time :

    Delivery time according to customer requirements

350A 600V High Frequency Module Power Quick Anderson Plug



1. **High Power Handling:**

   - Capable of handling high currents up to 350A, making it suitable for large power applications.



2. **Versatile AC/DC Compatibility:**

   - Designed to work seamlessly with both AC and DC power sources, providing flexibility in various applications.



3. **Durable Construction:**

   - Insulated with PC UL94V-0 material, ensuring durability and resistance to high temperatures.



4. **Silver-Plated Copper Contacts:**

   - Features high-quality contacts made of silver-plated copper, ensuring optimal conductivity and longevity.



5. **High-Frequency Operation:**

   - Engineered for high-frequency operation, making it ideal for applications requiring rapid power transfer.

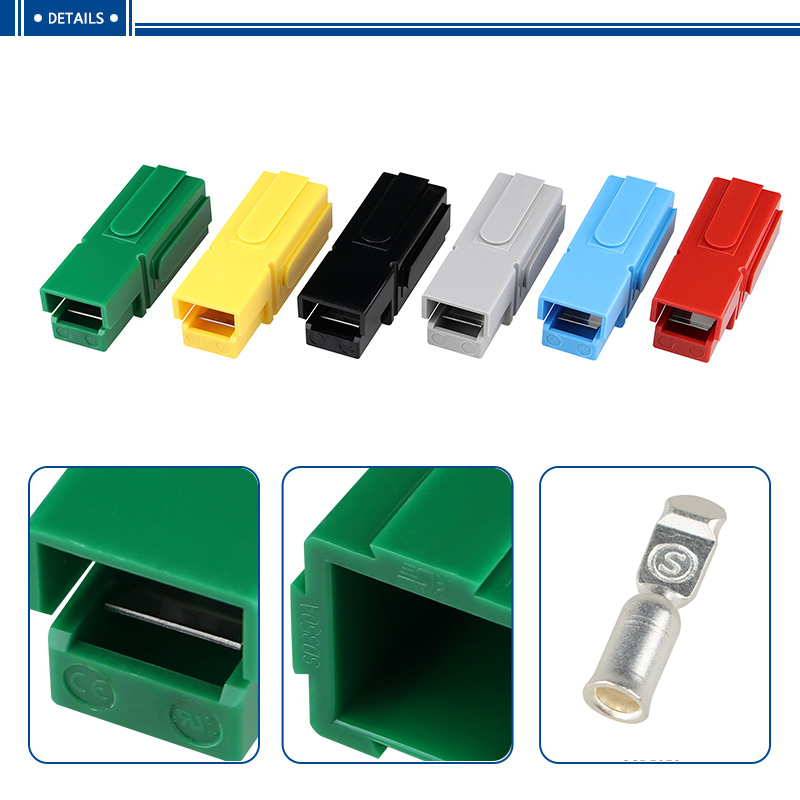

6. **Color-Coded Options:**

   - Available in a range of colors (gray, yellow, black, blue, green, red) for easy identification and organization.



Parameter:

Product Name 350A 600V High Frequency Module Power Quick Anderson Plug
Rated current(Amperes)  350A
Rated voltage(Volts) 600V
Shell color Green,Red,Black,Blue,Gray...
Insulation Resistance 5000MΩ
Flammability UL94 V-0
(AWG) Contact Barrel Wire Size(AWG) 1/0~3/0AWG
Process of production Precision punching
Environment temperature -20℃---125℃
Material of terminal  Red copper



Detailed introduction :



At Guang Dong SED, we are pioneers in pushing boundaries, offering an expansive selection of connector accessories that seamlessly complement our exceptional OEM wire harness customization services. Our dedication remains steadfast – we deliver comprehensive connector and wire harness solutions to meet a wide spectrum of needs.



Trust in SED Connector's quality and innovation for all your power connection needs. Upgrade to the SED Connector 120A 600V today, and experience the difference in performance and reliability. Power up with confidence!



 OEM Support:

    -Supports customization to meet specific requirements, with OEM options available for branding.



  The plug does not distinguish between male and female connectors, simplifying the connection

FQA:

1.Are you the manufacturer?

Yes, we are a manufacturer, brand SED, with the strength of connector and harness one-stop service.

2.What’s your MOQ?

There is no limit on the quantity of purchase, and the order is shipped

3.Is customization supported?

Support LOGO customization, support color customization, support connector open mold injection molding customization, support OEM wiring harness customization.

4.What is the delivery time?

Do not specify the time, order delivery, according to the customer's specified time delivery

5.How to place an order or know more about the products?

Contact sales staff online or by email
