50A 600V bipolar electric vehicle battery connector plug harness customization

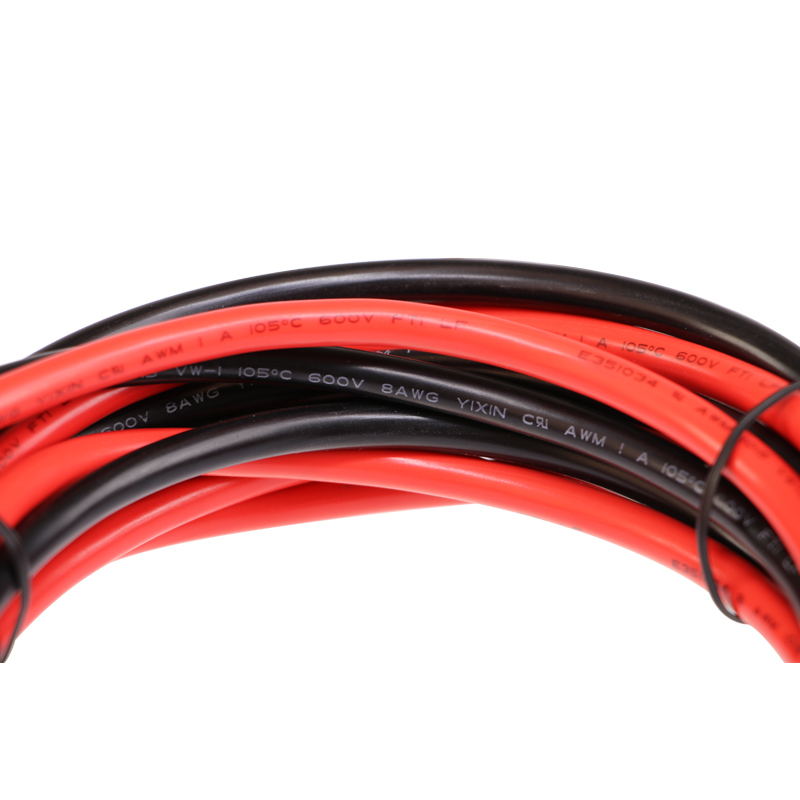

Bipolar plug 50A 600V wiring customization, 8AWG silicone wire 10m long end 50A plug, six-sided crimping wiring process, one-stop connector and wiring harness overall solution.

  • Item No :

  • Order(MOQ) :

  • Payment :

  • Product Origin :

  • Color :

  • Shipping Port :

  • Lead Time :

    Delivery according to customer's specified time

50A 600V bipolar electric vehicle battery connector plug harness customization



Simple Installation - Fits 6,8, 10 ,12Awg Cable;   Voltage 600V Max;   Just put the cable in terminal,solder or crimp them, then slide them into the back of plug and lock in place

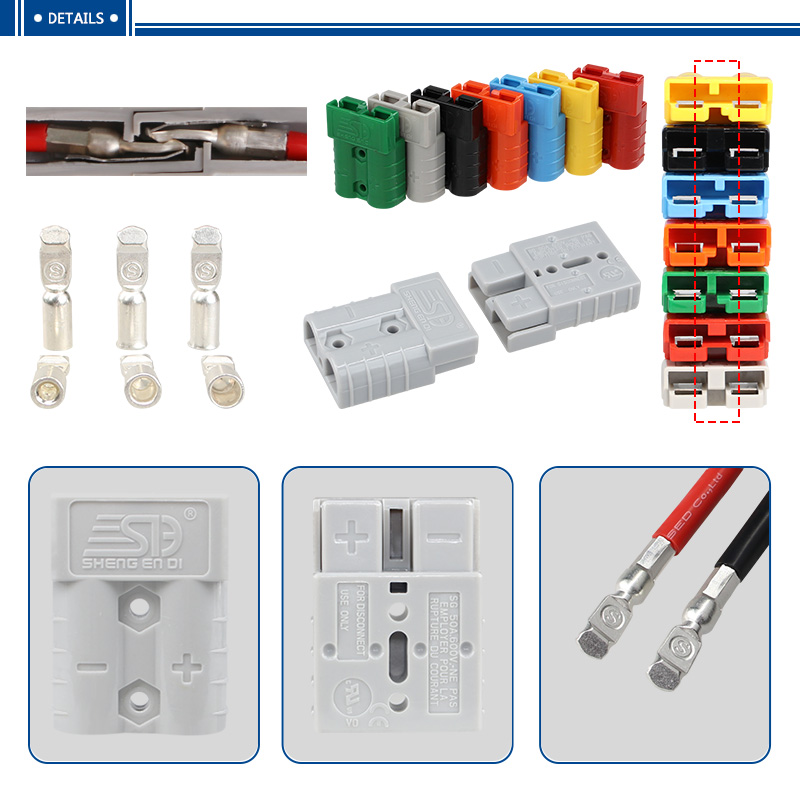

50A 600V electric vehicle battery connector plug PC Housing - The shell of the battery quick connector made of PC (polycarbonate), which provides superior resistance to wear, corrosion, water, and heat.    Each connector has an internal stainless steel spring to hold its electrical contacts in place, providing reliable service through 10,000+ separate connections.


High Conductivity - the copper terminal pins are silver plated to minimize electrical resistance while offering exceptional durability and stability.



Product Name 50A 600V bipolar electric vehicle battery connector plug
Rated current 50A
Rated voltage AC/DC 600V (Max)
Color Gray/red/blue/green/orange/black/yellow
Color Marking The rubber case has an anti misconnection function and is marked with different colors toprevent accidental circuit docking.
Flame retardant grade PC UL94 V-0
Material Shell material: PC (polycarbonate),    Contact terminal material: 99.99% pure copper and silver plated
Conductive metal material silver plated copper,Choosing the corresponding terminal pins according to the size of the wire


Notice: Plugs are neither male nor female, they are genderless.For pairing, just buy any two connectors of the same color andamperage.

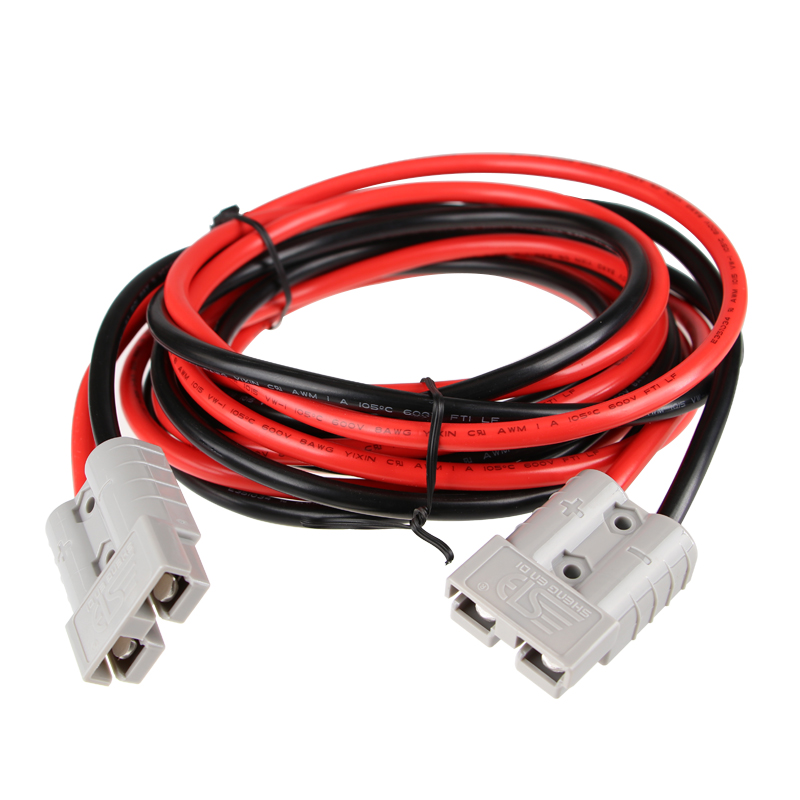

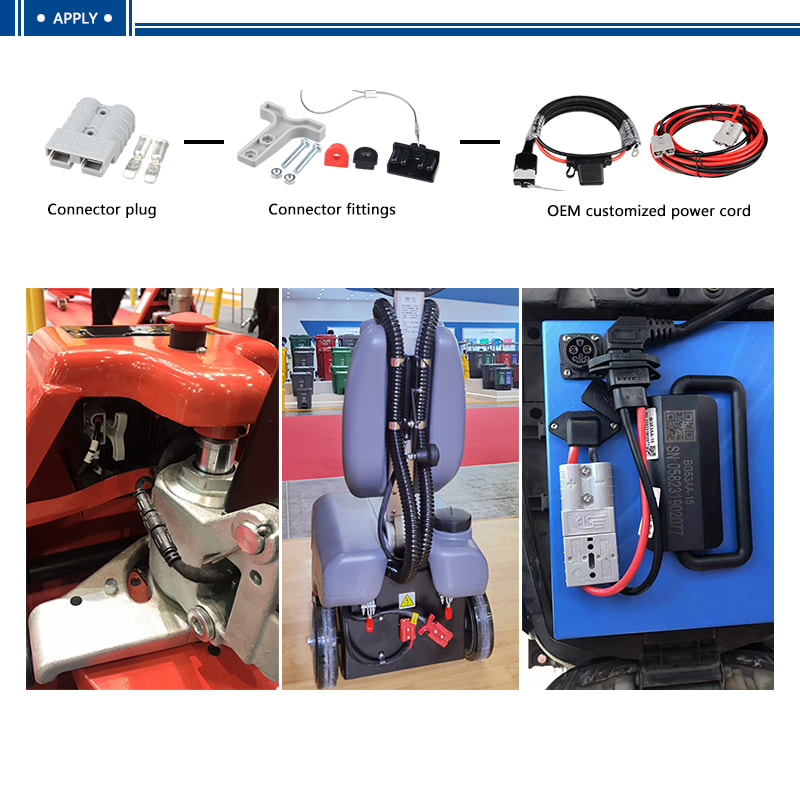

50A 600V battery plug harness customization

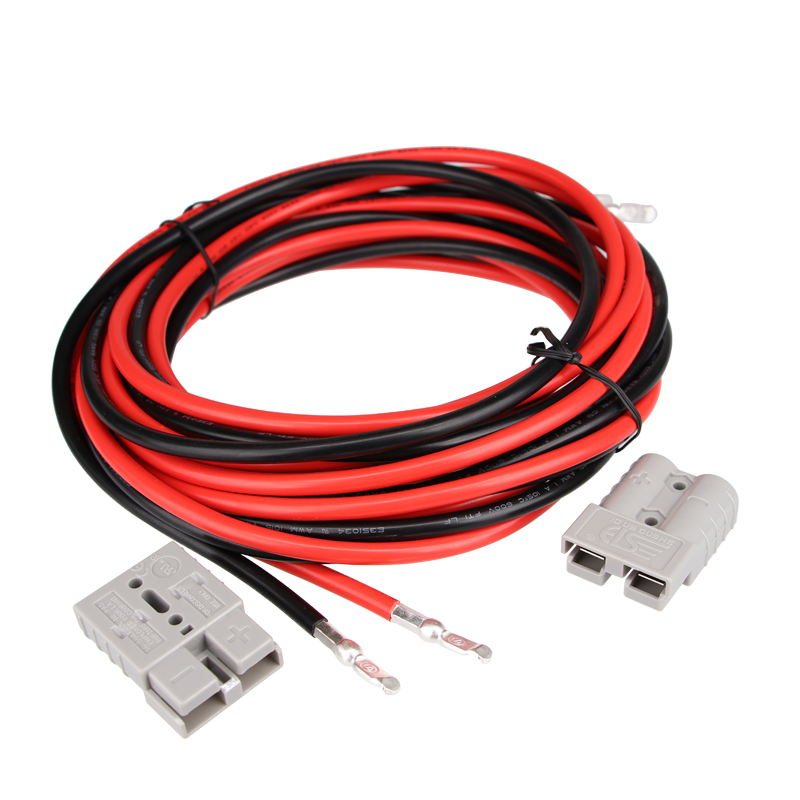

50A 600V Battery connector wiring

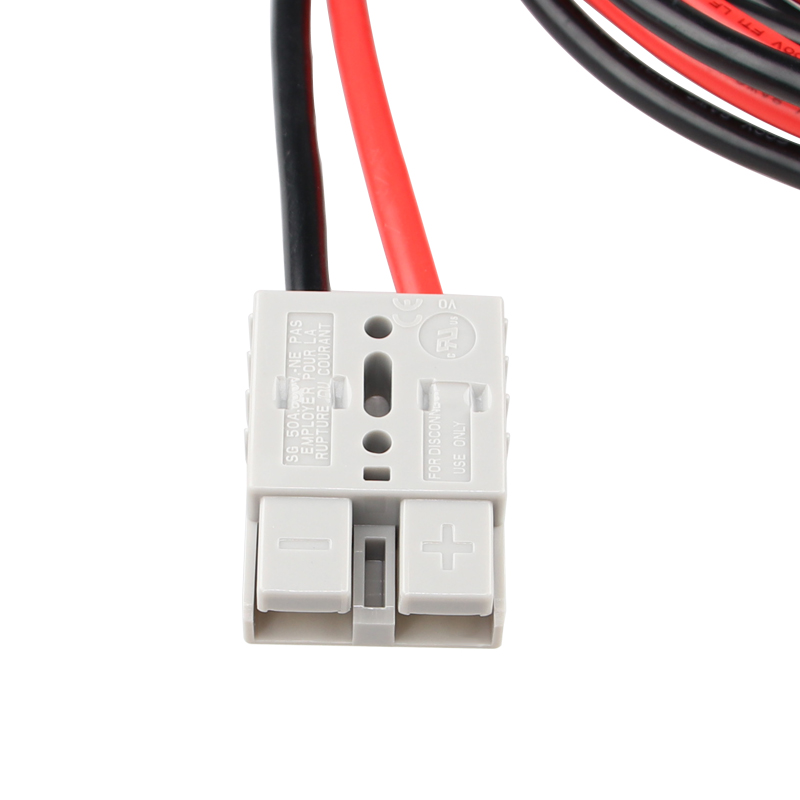

50A 600V battery power connector plug

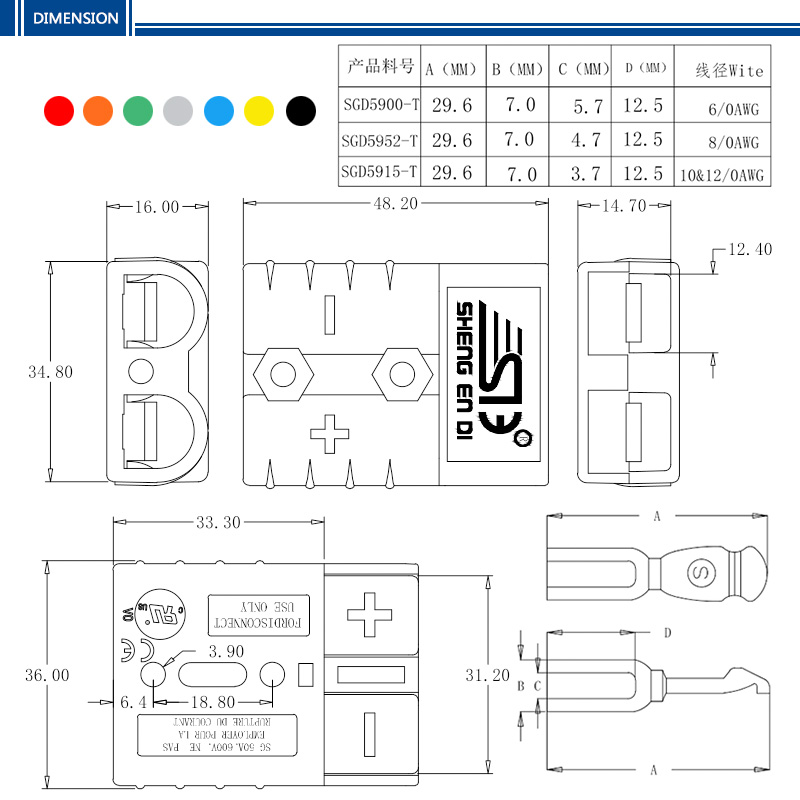

50A battery power connector plug dimension drawing

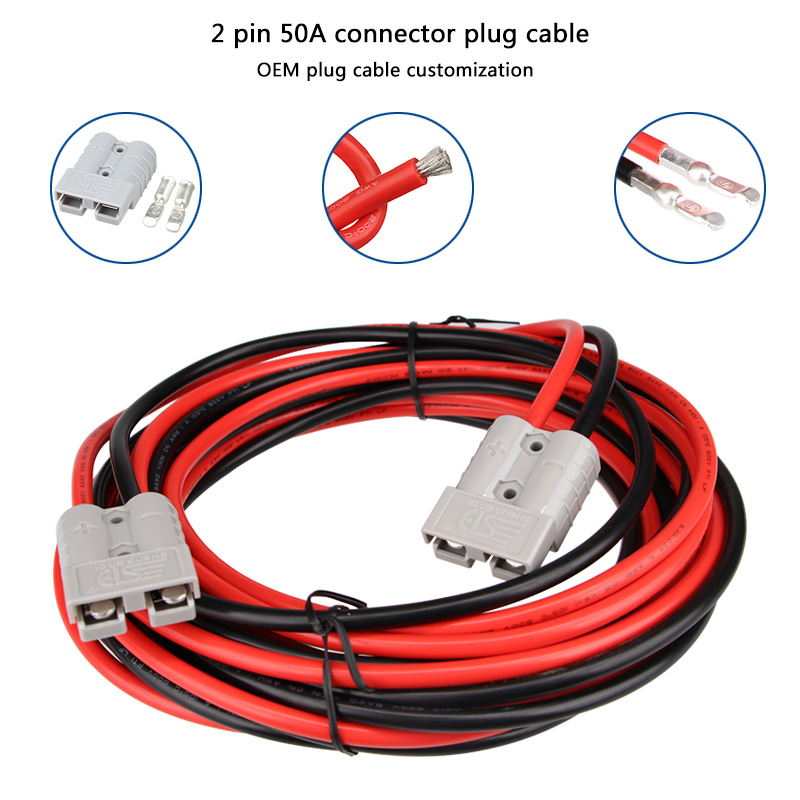

50A 600V bipolar electric vehicle battery connector

Why Choose Us?

GuangDong SED CO., LTD. founded in 2013, is located in Chashan Town, Dongguan City. After years focused on the scientific research of various kinds of high-current connectors,Battery connector,fast-charging plugs, sockets and other connection products. It becomes a national high-tech enterprise integrating research and development, production and sales. Professional to provide customers with 5A a 350A high current connector development, design and wiring harness overall solution.

SED has laboratory, testing room and automatic production workshop, passed ISO9001, IATF16949 quality system certification, products passed UL/CUL, CE, ROSH, REACH, a number of product certification, has obtained more than 40 national trademark patents, get a number of new invention patents.  The main products are single-pole connector, bipolar connector, multi-pole connector, SIN connector, power connector, connector terminals, battery accessories and so on, the application field covers automobiles, electric vehicles, communication power supplies, medical equipment, energy storage batteries, handling equipment, clean energy and so on



1、SED brand advantage?

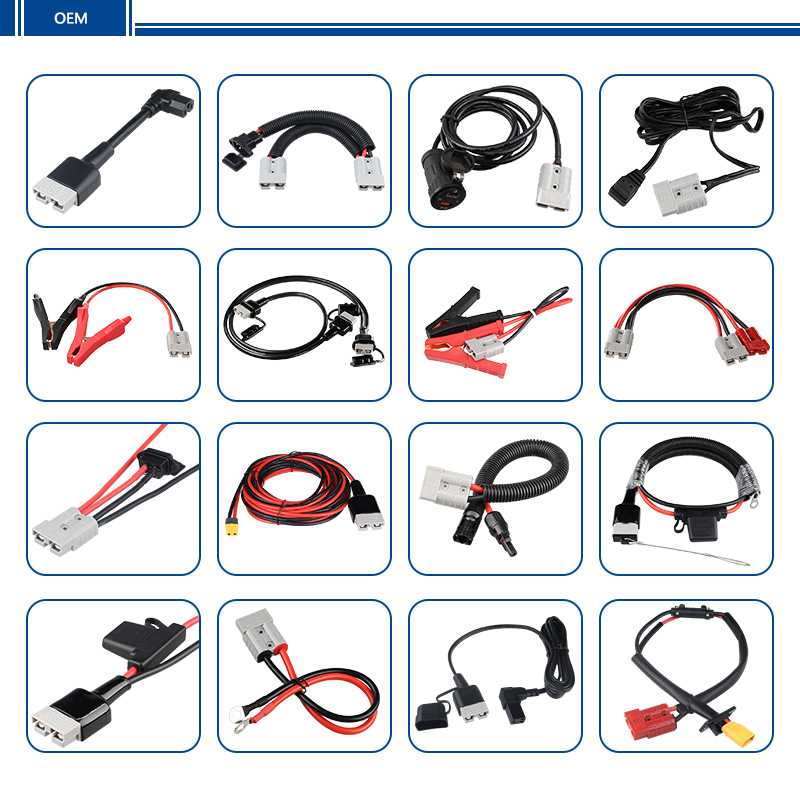

Support connector design mold customization, wiring customization, packaging customization, one-stop connector and wire harness overall solution

2、Service advantage?

24-hour online service, support online technical guidance services, engineering and technical personnel to provide solutions, return and exchange services

3、Are you a factory?

Yes, we have a factory located in Dongguan.  Welcome to visit us.

4、What is the MOQ?

The sample in stock is 1pcs; the price can be negotiated for bulk order.

5、Can I customize the size?

Yes, the power line can be customized according to your requirements.

6、What is your payment term?

We mainly request TT payment, T/T 30% deposit to confirm order and proceed before production, balance before shipment. Paypal and western union are acceptable for sample order.
