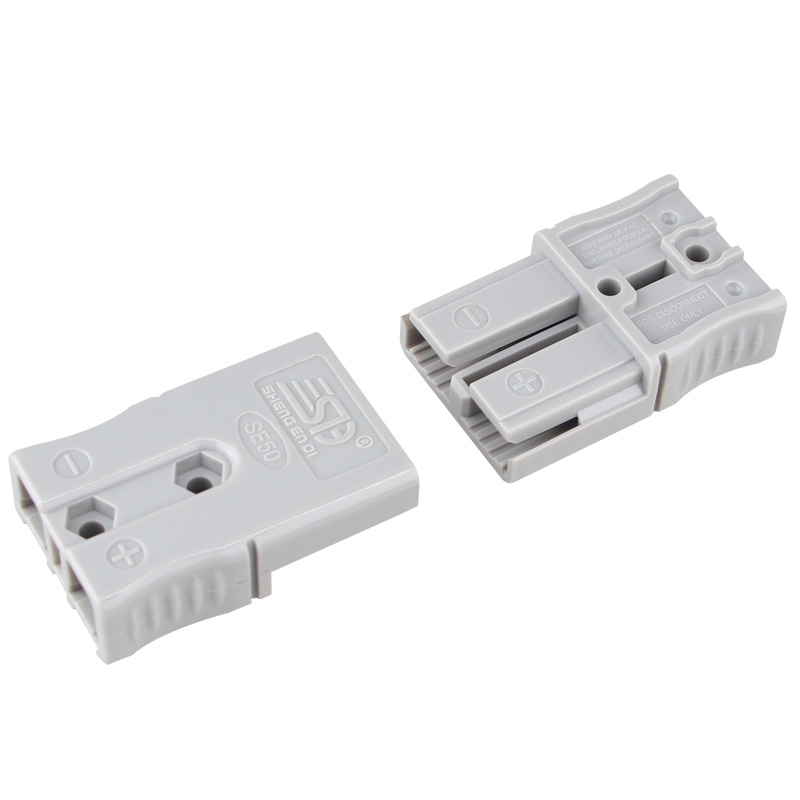

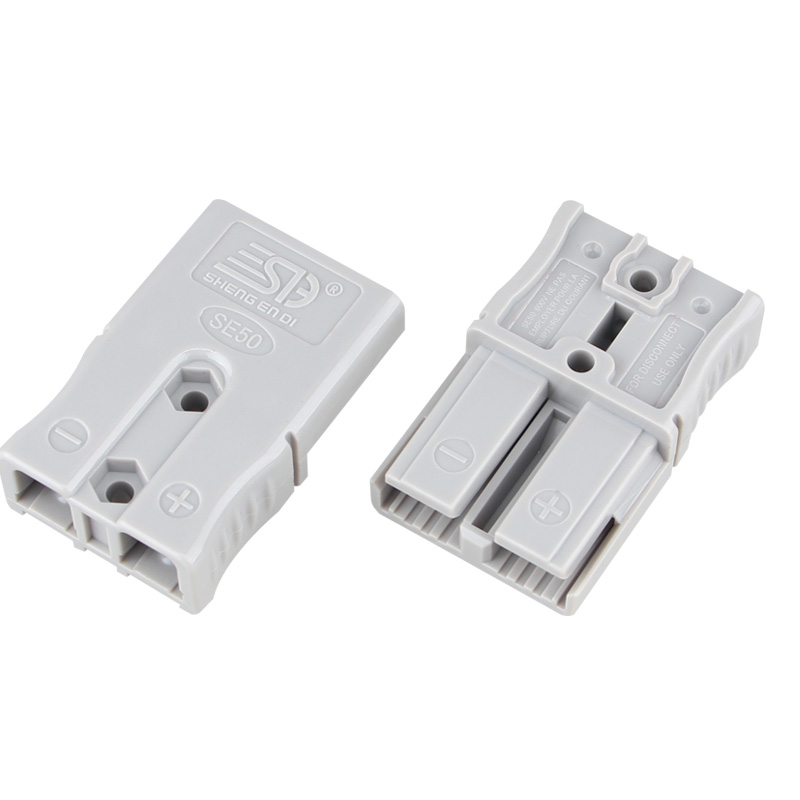

50A 600V Forklift Power Gray Connector Battery Plug - the perfect solution for your electrical connection needs.

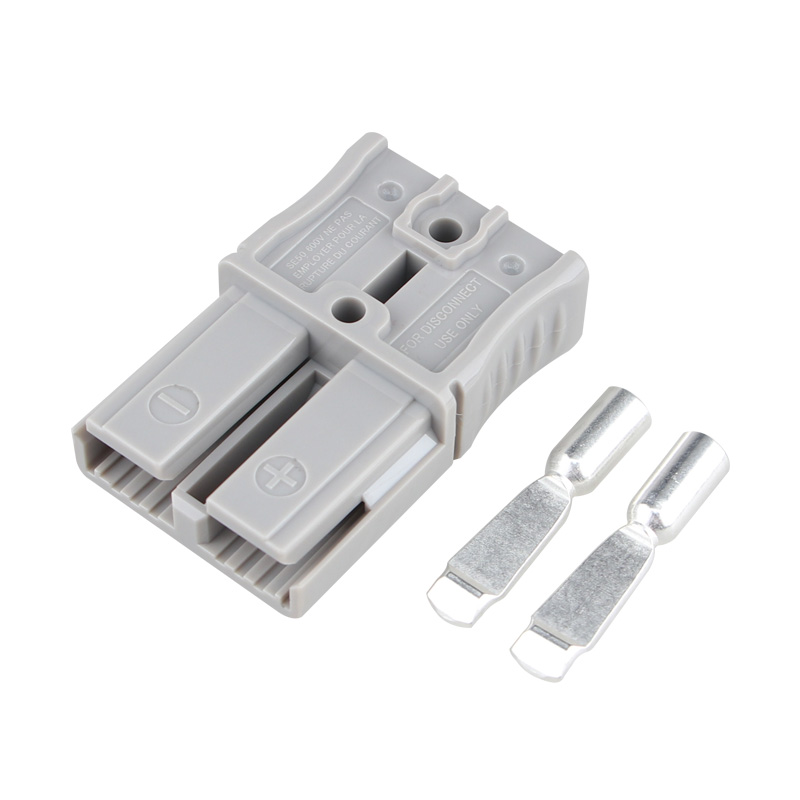

This connector features a user-friendly design with same-color mating, eliminating the need to distinguish between male and female connectors. The package includes a robust rubber casing and two high-quality terminals along.
Item No :
SEOrder(MOQ) :
1Payment :
TTProduct Origin :
DongguanColor :
GrayShipping Port :
ShenzhenLead Time :
Delivery time according to customer requirements50A 600V Forklift Power Gray Connector Battery Plug
Constructed from premium PC material, this high-current battery connector boasts excellent durability and is molded with V0-rated flame and fire resistance properties, ensuring enhanced safety during operation. The terminals and signal pins are crafted from high-quality silver-plated copper, ensuring reliable and efficient electrical conductivity.
The fast and easy-to-use design allows for quick plug-and-play connections, making it a convenient choice for various SEDlications. When it comes to replacements, the process is simple and hassle-free. Choose the 50A 600V Dual-Pole Connector for a seamless and efficient electrical connection experience.
Parameter:
| Product Name | 50A 600V Forklift Power Gray Connector Battery Plug |
| Rated current(Amperes) | 50A |
| Rated voltage(Volts) | 600V |
| Shell color | Gray |
| Insulation Resistance | >9900MΩ |
| Flammability | UL94 V-0 |
| (AWG) Contact Barrel Wire Size(AWG) | 6~10/0AWG |
| Process of production | Precision punching |
| Environment temperature | -20℃---75℃ |
| Material of terminal | Red copper |
Detailed introduction ：
Guang Dong SED Industrial Co., Ltd., your ultimate destination for comprehensive connector solutions. As an industry-leading enterprise, we excel in research, development, production, and sales of a wide range of connectors. Our extensive product lineup includes plugs, connectors, power connectors, energy storage connectors, photovoltaic connectors, waterproof connectors, electric vehicle connectors, generator connectors, golf cart plugs, battery plugs, lithium battery plugs, floor scrubber plugs, scrubber plugs, and stacker plugs.
But that's not all! At Guang Dong SED, we go beyond connectors. We also offer a wide range of connector accessories and provide top-notch OEM wire harness customization services. Our commitment lies in delivering all-inclusive connector and wire harness solutions to cater to diverse requirements.
Driven by innovation, quality, and unwavering customer satisfaction, we strive to be your trusted partner across various industries. Our state-of-the-art manufacturing facility, combined with a highly experienced team, empowers us to produce reliable and high-performance connectors and wire harnesses.
FQA：
1.Are you the manufacturer?
Yes, we are a manufacturer, brand SED, with the strength of connector and harness one-stop service.
2.What’s your MOQ?
There is no limit on the quantity of purchase, and the order is shipped
3.Is customization supported?
Support LOGO customization, support color customization, support connector open mold injection molding customization, support OEM wiring harness customization.
4.What is the delivery time?
Do not specify the time, order delivery, according to the customer's specified time delivery
5.How to place an order or know more about the products?
Contact sales staff online or by email
The same color is inserted regardless of male and female, mechanical parts are designed to prevent stupidity, rated current 50A, rated voltage 600V High Conductivity - the copper terminal pins are silver plated to minimize electrical resistance while offering exceptional durability and stability. Notice: Plugs are neither male nor female, they are genderless.For pairing, just buy any two connectors of the same color andamperage.
Learn More
Simple Installation - Fits 4,6, 8 ,10, 12, 14 Awg Cable; Voltage 600V Max; Just put the cable in terminal,solder or crimp them, then slide them into the back of plug and lock in place PC Housing - The shell of the battery quick connector made of PC (polycarbonate), which provides superior resistance to wear, corrosion, water, and heat. Each connector has an internal stainless steel spring to hold its electrical contacts in place, providing reliable service through 10,000+ separate connections.
Learn More
- Foolproof Design: The gender-neutral and color-matching insertion mechanism ensures hassle-free and secure connections. - Color-Coded Safety: Different colored connectors cannot be interlocked, minimizing the risk of incorrect connections and enhancing overall safety.
Learn More
350A 600V Lithium Polymer Battery Connector. Crafted with precision using high-grade PC injection molding, this connector boasts exceptional attributes that redefine durability and performance. - Premium PC Injection Molded Shell: Our connectors are encased in top-tier PC material, ensuring superior performance under various conditions. - Temperature Resilience: Operating flawlessly within a temperature range of -25°C to 125°C, our connectors maintain their efficiency in diverse environments.
Learn More
The same color is inserted regardless of male and female, the accessory power plug is used in various occasions, rated current 50A, rated voltage 600V, a variety of rubber shell colors can be selected
Learn More
The same color is inserted regardless of male and female, mechanical parts anti-dull design, fire retardant V0 grade.Rated current 50A, rated voltage 600V.
Learn More
Rated current 50A, rated voltage 600V, bipolar connector red rubber shell, mechanical parts to prevent stupid design, the same color to insert regardless of male and female
Learn More
40A Black Discharge Electric Plug Connector – a pinnacle of innovation, reliability, and functionality in the world of electric vehicle charging. Designed for convenience and efficiency, this plug boasts a seamless and effortless charging experience for both commercial and personal use.
Learn More
