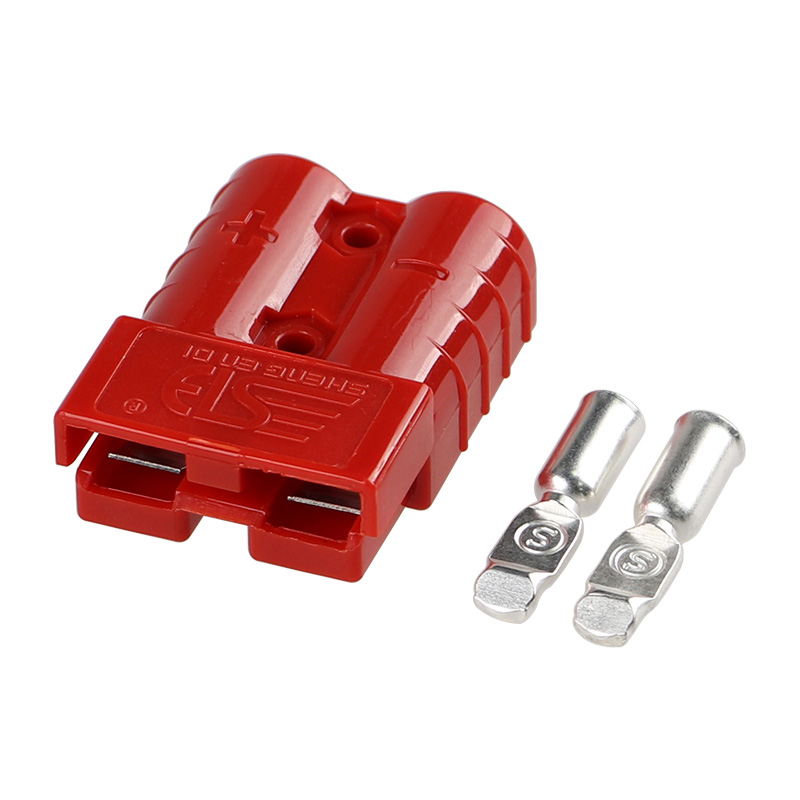

50A 600V Power Connector Charging Anderson Plug, designed for versatile AC/DC applications.
Crafted with precision and advanced materials, this power connector ensures reliable and efficient connectivity in a variety of fields, from power supply and outdoor applications to electric vehicles, energy systems, healthcare, industrial settings, and military applications.
Item No :
SGOrder(MOQ) :
1Payment :
TTProduct Origin :
DongguanColor :
Yellow.Red,Blue,Black,GreenShipping Port :
ShenzhenLead Time :
Delivery time according to customer requirementsHigh Amperage: With a 50A capacity, this power connector is capable of handling substantial electrical loads, making it ideal for various applications.
- Versatility: Suitable for both AC and DC applications, offering flexibility for a wide range of usage scenarios.
Robust Construction: The connector is crafted with UL94V-0 rated plastic/PC material, ensuring durability and fire resistance for enhanced safety.
Silver-Plated Contacts: The use of silver-plated copper terminals enhances conductivity and reduces the risk of corrosion.
Cold Press Technology: The connectors are produced using a precision cold press process, ensuring consistent quality and reliable performance.
Flame-Resistant and Dustproof: Engineered with safety in mind, this connector features flame-resistant and dustproof properties, making it suitable for demanding environments.
Parameter:
| Product Name | 50A 600V Power Connector Charging Anderson Plug | |
| Rated current(Amperes) | 50A | |
| Rated voltage(Volts) | 600V | |
| Shell color | Yellow.Red,Blue,Black,Green | |
| Insulation Resistance | 9900MΩ | |
| Flammability | UL94 V-0 | |
| (AWG) Contact Barrel Wire Size(AWG) | 6AWG~12AWG |
|
| Process of production | Precision punching | |
| Environment temperature | -20℃---75℃ | |
| Material of terminal | Red copper |
Detailed introduction ：
At Guang Dong SED, we are trailblazers, constantly pushing the boundaries of what's possible. We offer an extensive range of connector accessories that perfectly complement our outstanding OEM wire harness customization services. Our commitment is unwavering, and our mission is clear: to provide comprehensive connector and wire harness solutions that cater to a diverse array of requirements.
Customization and OEM Support:
Tailor this power connector to your specific requirements with our customization options. We provide OEM support, ensuring that our product aligns seamlessly with your unique needs.
FQA：
1.Are you the manufacturer?
Yes, we are a manufacturer, brand SED, with the strength of connector and harness one-stop service.
2.What’s your MOQ?
There is no limit on the quantity of purchase, and the order is shipped
3.Is customization supported?
Support LOGO customization, support color customization, support connector open mold injection molding customization, support OEM wiring harness customization.
4.What is the delivery time?
Do not specify the time, order delivery, according to the customer's specified time delivery
5.How to place an order or know more about the products?
Contact sales staff online or by email
The same color is inserted regardless of male and female, mechanical parts are designed to prevent stupidity, rated current 50A, rated voltage 600V High Conductivity - the copper terminal pins are silver plated to minimize electrical resistance while offering exceptional durability and stability. Notice: Plugs are neither male nor female, they are genderless.For pairing, just buy any two connectors of the same color andamperage.
Learn More
Simple Installation - Fits 4,6, 8 ,10, 12, 14 Awg Cable; Voltage 600V Max; Just put the cable in terminal,solder or crimp them, then slide them into the back of plug and lock in place PC Housing - The shell of the battery quick connector made of PC (polycarbonate), which provides superior resistance to wear, corrosion, water, and heat. Each connector has an internal stainless steel spring to hold its electrical contacts in place, providing reliable service through 10,000+ separate connections.
Learn More
- Foolproof Design: The gender-neutral and color-matching insertion mechanism ensures hassle-free and secure connections. - Color-Coded Safety: Different colored connectors cannot be interlocked, minimizing the risk of incorrect connections and enhancing overall safety.
Learn More
350A 600V Lithium Polymer Battery Connector. Crafted with precision using high-grade PC injection molding, this connector boasts exceptional attributes that redefine durability and performance. - Premium PC Injection Molded Shell: Our connectors are encased in top-tier PC material, ensuring superior performance under various conditions. - Temperature Resilience: Operating flawlessly within a temperature range of -25°C to 125°C, our connectors maintain their efficiency in diverse environments.
Learn More
The same color is inserted regardless of male and female, the accessory power plug is used in various occasions, rated current 50A, rated voltage 600V, a variety of rubber shell colors can be selected
Learn More
The same color is inserted regardless of male and female, mechanical parts anti-dull design, fire retardant V0 grade.Rated current 50A, rated voltage 600V.
Learn More
Rated current 50A, rated voltage 600V, bipolar connector red rubber shell, mechanical parts to prevent stupid design, the same color to insert regardless of male and female
Learn More
40A Black Discharge Electric Plug Connector – a pinnacle of innovation, reliability, and functionality in the world of electric vehicle charging. Designed for convenience and efficiency, this plug boasts a seamless and effortless charging experience for both commercial and personal use.
Learn More
