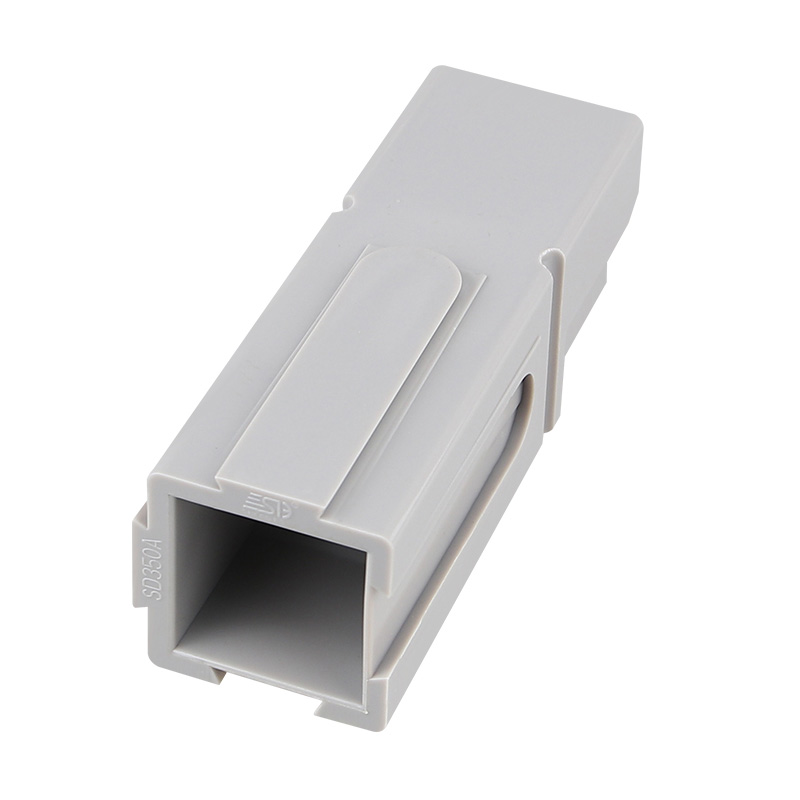

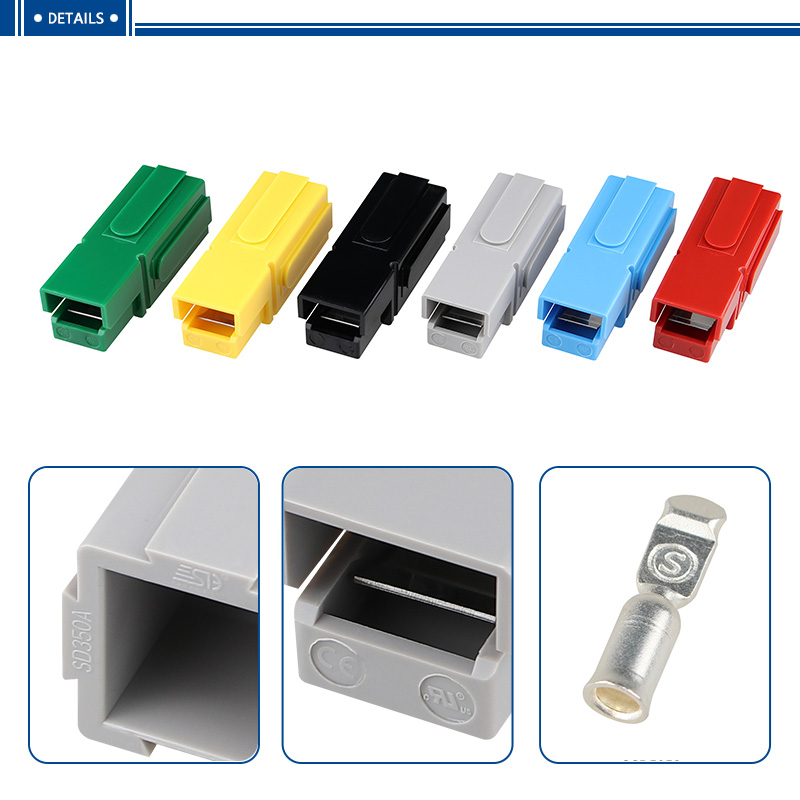

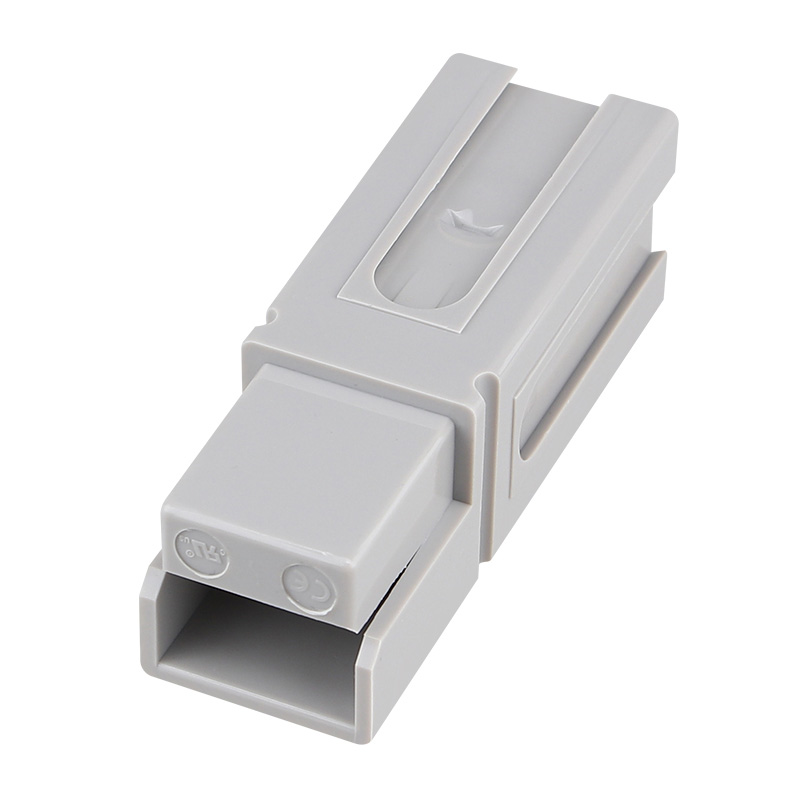

350A Grey Connector Anderson Plug, a versatile and robust connector designed for a wide range of applications.
This AC/DC connector combines durability, safety features, and customization options to meet the diverse needs of industries such as power supply, outdoor equipment, electric vehicles, energy, medical, industrial, and military.
Item No :
SDOrder(MOQ) :
1Payment :
TTProduct Origin :
DongguanColor :
GreyShipping Port :
ShenzhenLead Time :
Delivery time according to customer requirementsOutdoor 350A Grey Connector Anderson Plug
1. **Versatile Applications:** Designed for a broad spectrum of applications, from outdoor equipment to industrial and military uses, offering adaptability across various industries.
2. **Durable Construction:** Crafted with high-quality materials, including UL94V-0 rated plastic and silver-plated copper contact terminals, ensuring longevity and reliability.
3. **High-Frequency Operation:** The connector operates at high frequencies, providing efficient performance in dynamic and demanding environments.
4. **Customization Options:** The cold-pressed production process allows for easy customization to meet specific requirements, making it suitable for a range of tailored applications.
5. **Flame-Resistant and Fire-Resistant:** Engineered with flame-resistant and fire-resistant features, enhancing safety and reliability in challenging conditions.
Parameter:
| Product Name | Outdoor 350A Grey Connector Anderson Plug |
| Rated current(Amperes) | 350A |
| Rated voltage(Volts) | 600V |
| Shell color | Grey |
| Insulation Resistance | 5000MΩ |
| Flammability | UL94 V-0 |
| (AWG) Contact Barrel Wire Size(AWG) | 1/0~3/0AWG |
| Process of production | Precision punching |
| Environment temperature | -20℃---125℃ |
| Material of terminal | Red copper |
Detailed introduction ：
At Guang Dong SED, we are pioneers in pushing boundaries, offering an expansive selection of connector accessories that seamlessly complement our exceptional OEM wire harness customization services. Our dedication remains steadfast – we deliver comprehensive connector and wire harness solutions to meet a wide spectrum of needs.
Trust in SED Connector's quality and innovation for all your power connection needs. Upgrade to the SED Connector 120A 600V today, and experience the difference in performance and reliability. Power up with confidence!
The Outdoor 350A Grey Connector Anderson Plug stands as a reliable solution for powering and connecting equipment in diverse settings.
Whether in the great outdoors or within industrial facilities, this connector offers a combination of functionality, safety, and customization to meet the evolving needs of modern applications.
FQA：
1.Are you the manufacturer?
Yes, we are a manufacturer, brand SED, with the strength of connector and harness one-stop service.
2.What’s your MOQ?
There is no limit on the quantity of purchase, and the order is shipped
3.Is customization supported?
Support LOGO customization, support color customization, support connector open mold injection molding customization, support OEM wiring harness customization.
4.What is the delivery time?
Do not specify the time, order delivery, according to the customer's specified time delivery
5.How to place an order or know more about the products?
Contact sales staff online or by email
The same color is inserted regardless of male and female, mechanical parts are designed to prevent stupidity, rated current 50A, rated voltage 600V High Conductivity - the copper terminal pins are silver plated to minimize electrical resistance while offering exceptional durability and stability. Notice: Plugs are neither male nor female, they are genderless.For pairing, just buy any two connectors of the same color andamperage.
