/55A 600V Single Pole Electrical Power Battery Anderson Connector
55A 600V High frequency module power quick anderson plug
55A 600V Single Pole Electrical Power Battery Anderson Connector
55A 600V Single-Pole Battery Anderson Connectors
55A 600V Unipolar Mobile Power Anderson Connector
55A 600V Unipolar battery anderson connector

55A 600V Single Pole Electrical Power Battery Anderson Connector

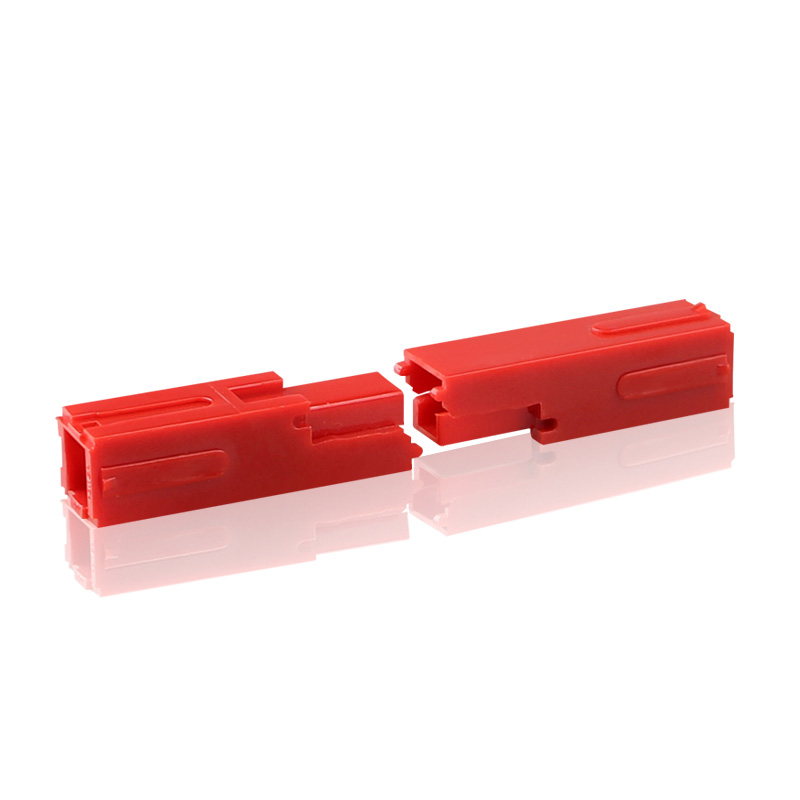

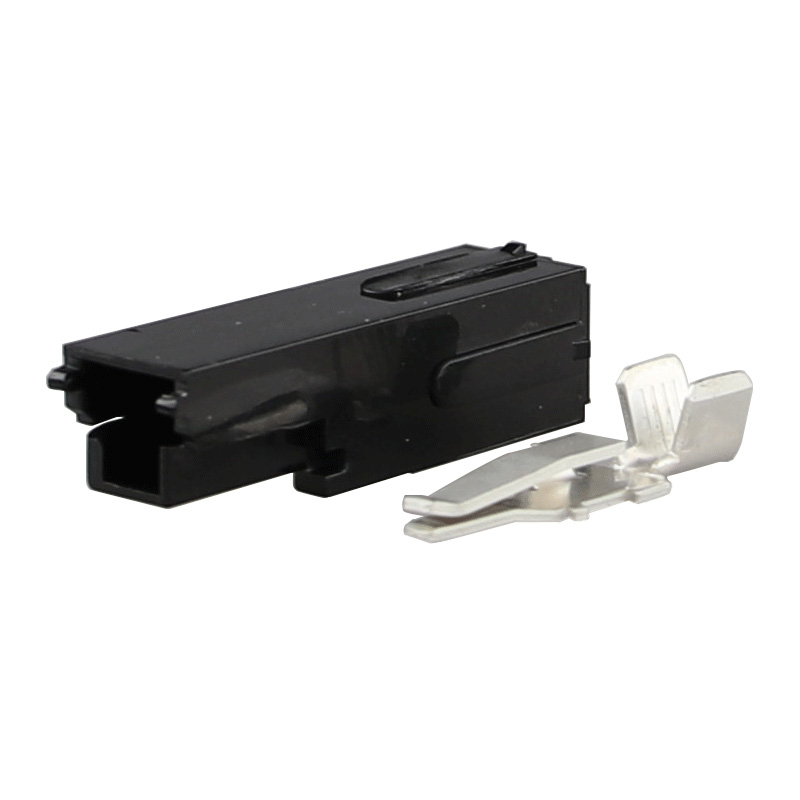

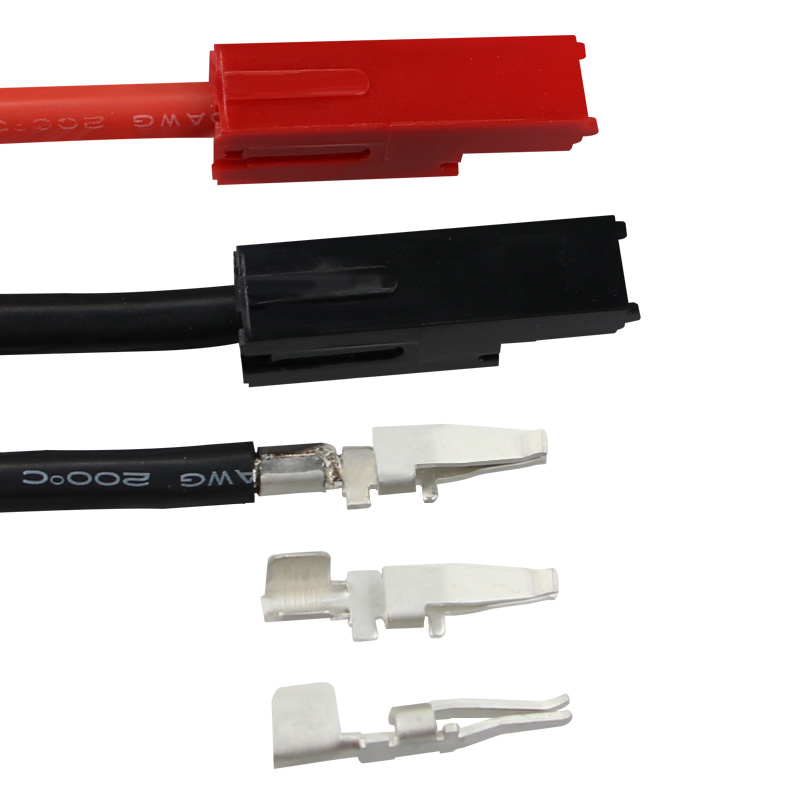

 55A 600V Single Pole Electrical Power Battery Anderson Connector is designed to cater to a broad spectrum of power needs in the domain of electric mobility.



It provides a flexible and efficient power connection suitable for electric wheelchairs, elderly mobility scooters, and lithium batteries.



The single pole design ensures a simple connection without the need for identifying male or female plugs, enabling easy and quick assembly.

  • Item No :

    SD
  • Order(MOQ) :

    1
  • Payment :

    TT
  • Product Origin :

    Dongguan
  • Shipping Port :

    Shenzhen
  • Lead Time :

    Delivery time according to customer requirements

55A 600V Single Pole Electrical Power Battery Anderson Connector



1. **Universal Application:**

   - Ideal for electric wheelchairs, mobility scooters, lithium batteries, and other power sources.

   - A single pole connector applicable to a variety of electrical power sources.



2. **Universal Design:**

   - The connector does not distinguish between male or female plugs, allowing for easy connection.

   - Same-color connectors interlock with each other, regardless of color, enabling convenient usage.

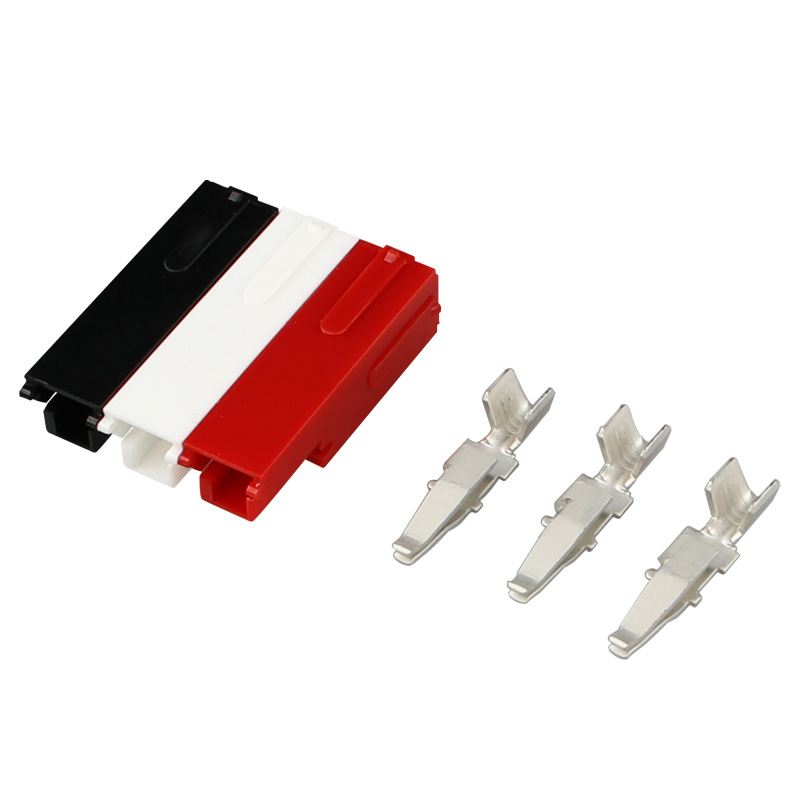

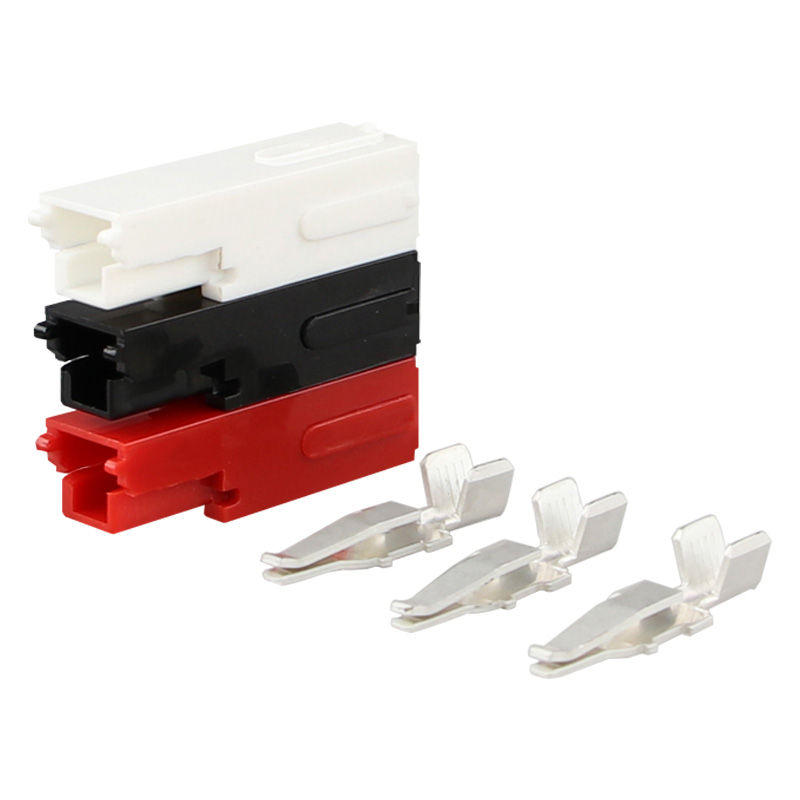

3. **Color Variety and Versatility:**

   - Available in red, white, and black colors for diverse applications and customization.

   - Connectors of the same or different colors can be interlinked and assembled for multi-pole applications.



4. **Robust and Safety-Centric:**

   - Exhibits similarity to other single pole Anderson connectors, ensuring compatibility and ease of use.

   - Fire-retardant and flame-resistant, designed with PC UL94V-0 material for enhanced safety.



Parameter:

Product Name 55A 600V Single Pole Electrical Power Battery Anderson Connector
Rated current(Amperes)  55A
Rated voltage(Volts) 600V
Shell color Black
Insulation Resistance 1000MΩ
Flammability UL94 V-0
(AWG) Contact Barrel Wire Size(AWG) 6~12AWG
Process of production Precision punching
Environment temperature -20℃---125℃
Material of terminal  Red copper



Detailed introduction :



Guangdong SED Industrial Co., Ltd. - Redefining Modern Electronic Components Integration!



Nestled in the heart of Chashan Town, Dongguan City, Guangdong Province, our state-of-the-art enterprise is your one-stop destination for cutting-edge electronic solutions. Seamlessly merging research, development, manufacturing, sales, and brand representation, we are at the forefront of innovation.



The Anderson Connector’s design and construction are in line with safety requirements, exhibiting fire-retardant qualities and using PC UL94V-0 material. It shares compatibility with other Anderson connectors, ensuring reliability and adherence to safety standards.



The 55A 600V Single Pole Electrical Power Battery Anderson Connector is a practical, adaptable, and safety-oriented solution, ensuring convenient power connectivity across a range of electric mobility devices and power sources.



FQA:

1.Are you the manufacturer?

Yes, we are a manufacturer, brand SED, with the strength of connector and harness one-stop service.

2.What’s your MOQ?

There is no limit on the quantity of purchase, and the order is shipped

3.Is customization supported?

Support LOGO customization, support color customization, support connector open mold injection molding customization, support OEM wiring harness customization.

4.What is the delivery time?

Do not specify the time, order delivery, according to the customer's specified time delivery

5.How to place an order or know more about the products?

Contact sales staff online or by email
