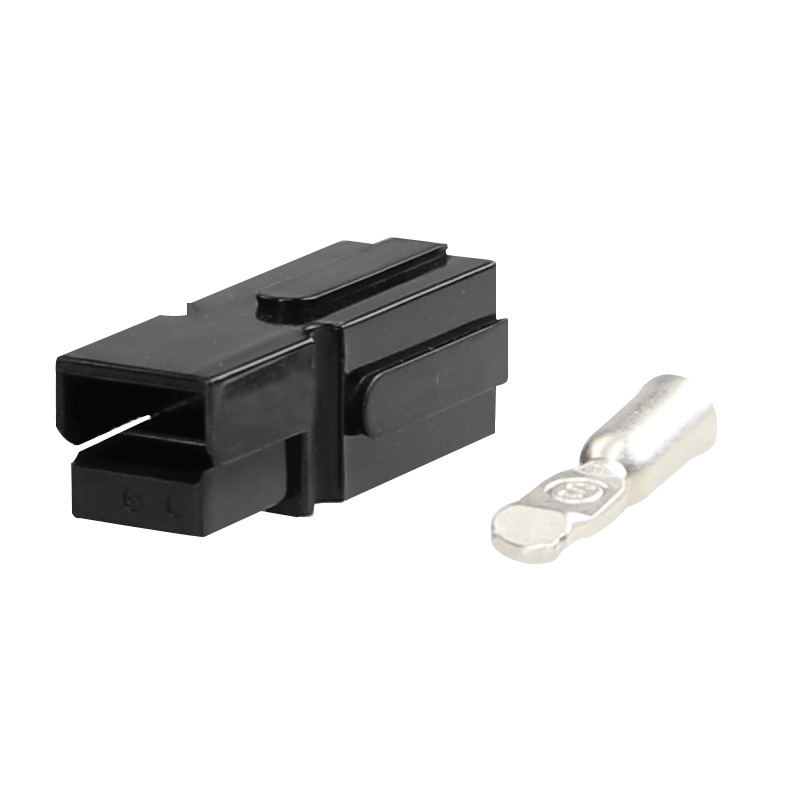

This unipolar connector is suitable for various power equipment such as electric wheelchairs, elderly scooters, lithium batteries, etc.
It adopts a pin-type quick-connect design. There is no need to distinguish between male and female plugs. You only need to plug in the same color according to the color.
Item No :
SDOrder(MOQ) :
1Payment :
TTProduct Origin :
DongguanShipping Port :
ShenzhenLead Time :
Delivery time according to customer requirements75A 600V 1P Single Pole Pin Quick Connect Anderson Connector

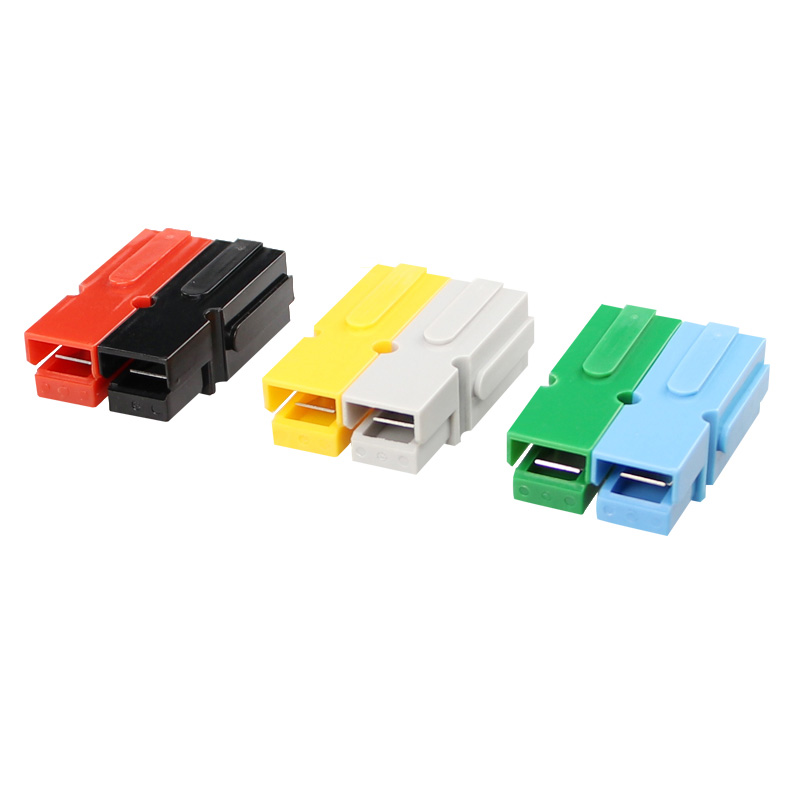

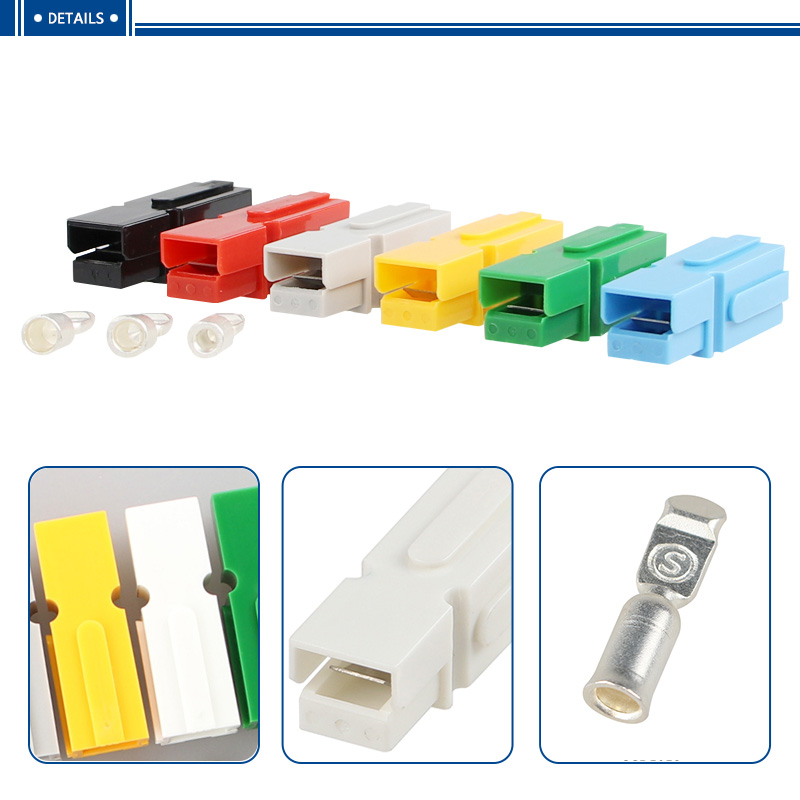

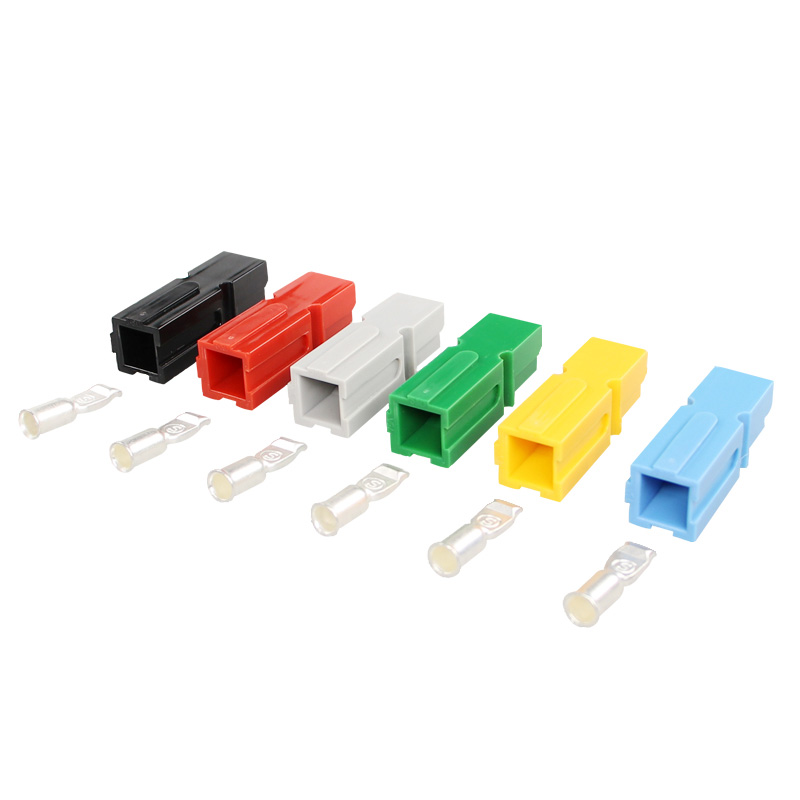

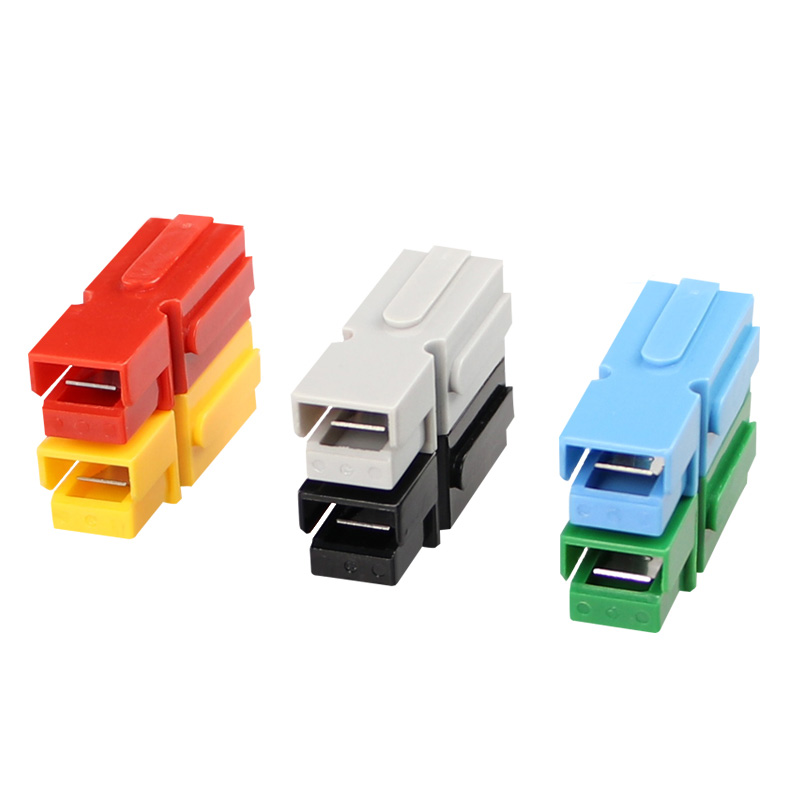

Available colors are blue, yellow, green, red, gray and black. In addition, you can also splice and assemble anderson connectors of the same color or different colors into multi-poles as needed.
Compared with other single-pole anderson connectors, this Anderson connector has similar functions, has fire-retardant properties, and complies with PC UL94V-0 standards, ensuring product safety and reliability.

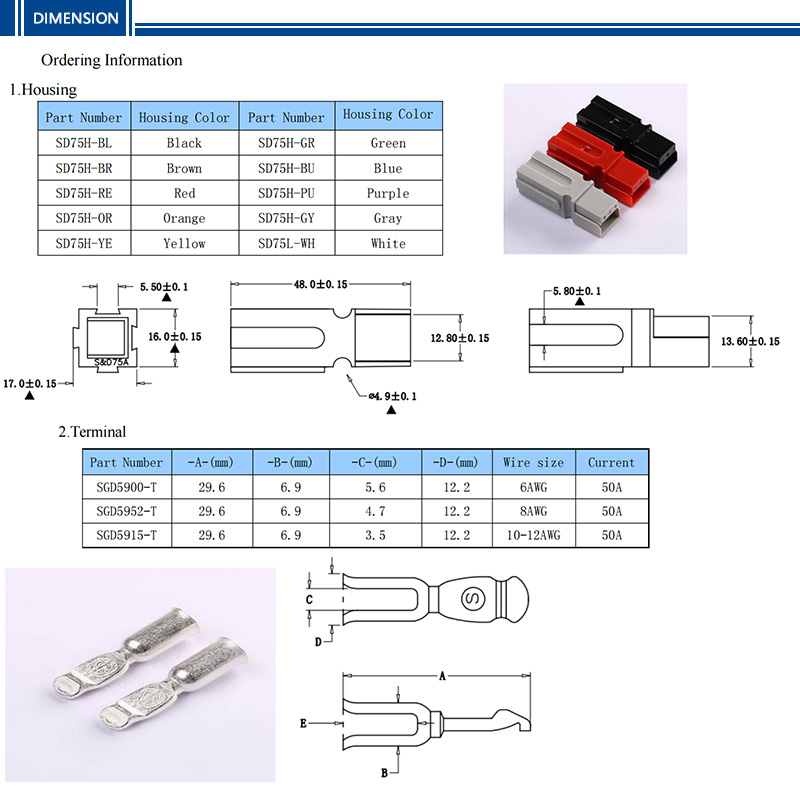

Parameter:
| Product Name | 75A 600V 1P Single Pole Pin Quick Connect Anderson Connector |
| Rated current(Amperes) | 75A |
| Rated voltage(Volts) | 600V |
| Shell color | White |
| Insulation Resistance | 5000MΩ |
| Flammability | UL94 V-0 |
| (AWG) Contact Barrel Wire Size(AWG) | 6~12AWG |
| Process of production | Precision punching |
| Environment temperature | -20℃---125℃ |
| Material of terminal | Red copper |
Detailed introduction ：
Guangdong SED Industrial Co., Ltd. stands as a contemporary integrated enterprise in the realm of electronic components, encompassing research, development, manufacturing, sales, and brand representation. Our strategic location in the well-connected Chashan Town, Dongguan City, Guangdong Province, positions us as a leading comprehensive solutions provider.
Our core expertise revolves around the creation and distribution of high-current connectors, plug connectors, UPS/EPS power sockets, and beyond.
We specialize in delivering tailor-made solutions that cater to a diverse range of industries, including automotive, electric vehicles, communication power, medical equipment, distribution systems, handling machinery, solar energy, and burgeoning sectors of emerging energy. Our commitment to quality shines through with our ISO9001 quality system certification, which is supported by our dedicated production and research base. Moreover, our products are adorned with CE, 3C certifications, and adhere to stringent environmental standards such as ROSH and REACH.
With a current rating of 75A and a voltage rating of 600V, the connector excels in high current and high voltage scenarios. Its high quality and reliability make it ideal for power connections.
FQA：
1.Are you the manufacturer?
Yes, we are a manufacturer, brand SED, with the strength of connector and harness one-stop service.
2.What’s your MOQ?
There is no limit on the quantity of purchase, and the order is shipped
3.Is customization supported?
Support LOGO customization, support color customization, support connector open mold injection molding customization, support OEM wiring harness customization.
4.What is the delivery time?
Do not specify the time, order delivery, according to the customer's specified time delivery
5.How to place an order or know more about the products?
Contact sales staff online or by email
The same color is inserted regardless of male and female, mechanical parts are designed to prevent stupidity, rated current 50A, rated voltage 600V High Conductivity - the copper terminal pins are silver plated to minimize electrical resistance while offering exceptional durability and stability. Notice: Plugs are neither male nor female, they are genderless.For pairing, just buy any two connectors of the same color andamperage.
Learn More
Simple Installation - Fits 4,6, 8 ,10, 12, 14 Awg Cable; Voltage 600V Max; Just put the cable in terminal,solder or crimp them, then slide them into the back of plug and lock in place PC Housing - The shell of the battery quick connector made of PC (polycarbonate), which provides superior resistance to wear, corrosion, water, and heat. Each connector has an internal stainless steel spring to hold its electrical contacts in place, providing reliable service through 10,000+ separate connections.
Learn More
- Foolproof Design: The gender-neutral and color-matching insertion mechanism ensures hassle-free and secure connections. - Color-Coded Safety: Different colored connectors cannot be interlocked, minimizing the risk of incorrect connections and enhancing overall safety.
Learn More
350A 600V Lithium Polymer Battery Connector. Crafted with precision using high-grade PC injection molding, this connector boasts exceptional attributes that redefine durability and performance. - Premium PC Injection Molded Shell: Our connectors are encased in top-tier PC material, ensuring superior performance under various conditions. - Temperature Resilience: Operating flawlessly within a temperature range of -25°C to 125°C, our connectors maintain their efficiency in diverse environments.
Learn More
The same color is inserted regardless of male and female, the accessory power plug is used in various occasions, rated current 50A, rated voltage 600V, a variety of rubber shell colors can be selected
Learn More
The same color is inserted regardless of male and female, mechanical parts anti-dull design, fire retardant V0 grade.Rated current 50A, rated voltage 600V.
Learn More
Rated current 50A, rated voltage 600V, bipolar connector red rubber shell, mechanical parts to prevent stupid design, the same color to insert regardless of male and female
Learn More
40A Black Discharge Electric Plug Connector – a pinnacle of innovation, reliability, and functionality in the world of electric vehicle charging. Designed for convenience and efficiency, this plug boasts a seamless and effortless charging experience for both commercial and personal use.
Learn More
